Probes¶
Typearray
A probe is a physical transducer or coil assembly used to inspect materials for flaws. The probes array is shared across all supported technologies; technology-specific specifications are described by the required probe type subobject.
UT Ultrasonic probes generate and receive high-frequency sound waves to detect internal flaws, measure thickness, or characterize materials. A probe can include individual elements (conventional UT) or elements arrays (PAUT).
ET Eddy current probes induce electromagnetic eddy currents in conductive materials to detect surface and near-surface flaws. A probe can include individual sensors (conventional EC) or sensor arrays (ECA).
A generic probe object features the following properties.
| Property | Type | Description |
|---|---|---|
id required |
integer | Unique probe id in the JSON structure |
| model | string | Probe model reference |
| serie | string | Probe series reference |
| serialNumber | string | Probe serial number |
| wedgeAssociation | object | Association of the probe with a wedge |
One of the following required probe type objects:
|
object |
wedgeAssociation¶
Typeobject
The wedgeAssociation object describes the association of a probe with a wedge.
| Property | Type | Description | Technology |
|---|---|---|---|
wedgeId required |
integer | Associated wedge id | All |
orientation required |
string | UT Normal or ReverseET Normal, Reverse, FlipPrimary, or FlipSecondary |
All |
mountingLocationId required |
integer | Associated mounting location id | UT |
ET ECA probes made from thin flexible PCB can be flipped and used from the back side, hence the additional FlipPrimary and FlipSecondary orientation options.

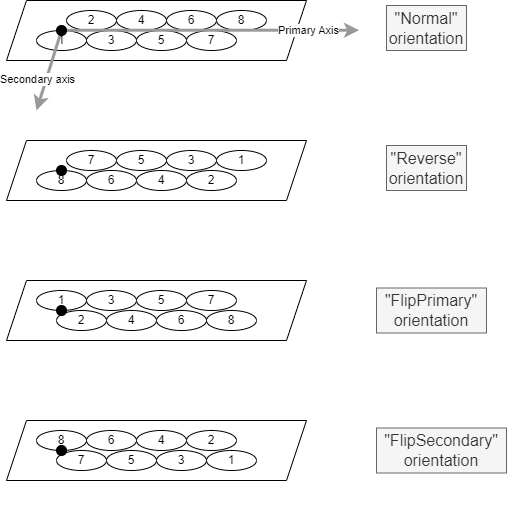

Probe orientation and effect on sensor positioning within the probe.
Related objects: wedges, mountingLocations

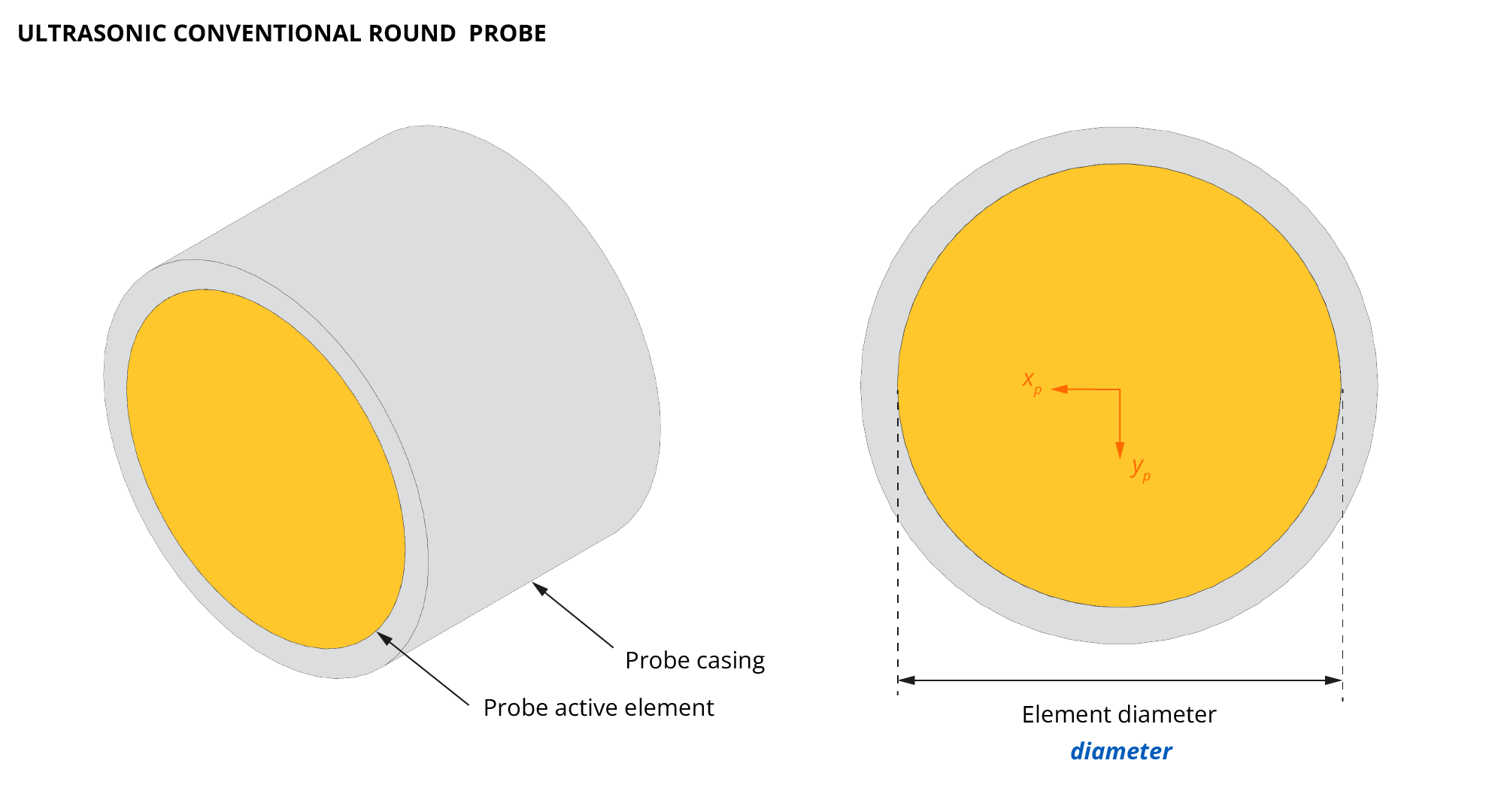

conventionalRound¶
UT Typeobject
The conventionalRound object describes a conventional single-element ultrasonic probe with a round active element.
| Property | Type | Unit | Description |
|---|---|---|---|
centralFrequency required |
number | Hz | Central frequency of the probe |
diameter required |
number | m | Diameter of the probe active element |
elements required |
array | - | An elements array (single element in this case) |
Example
"conventionalRound": {
"centralFrequency": 5000000.0,
"diameter": 0.00635,
"elements": [
{
"id": 0,
"acquisitionUnitId": 0,
"connectorName": "P1"
}
]
}

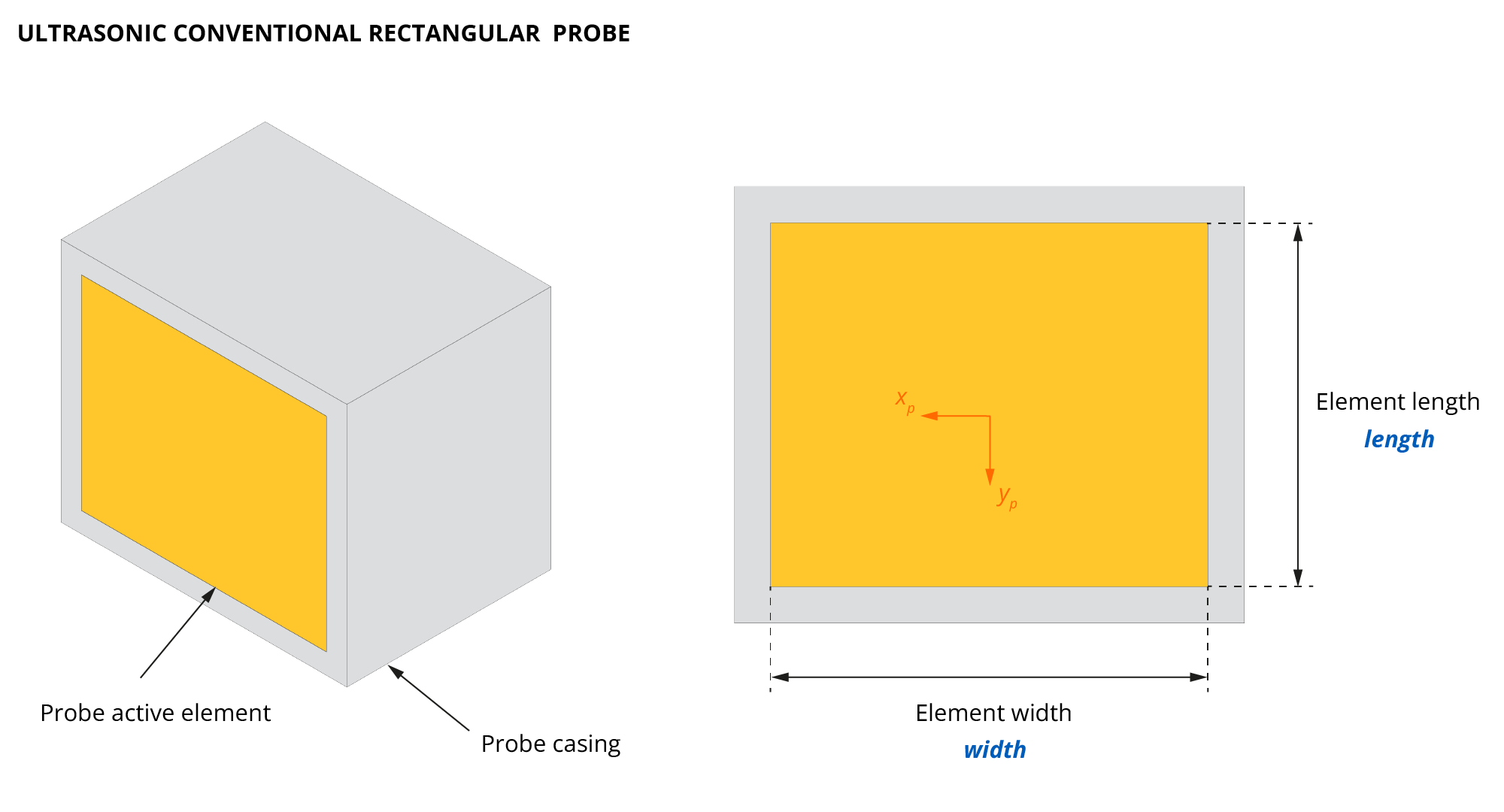

conventionalRectangular¶
UT Typeobject
The conventionalRectangular object describes a conventional single-element ultrasonic probe with a rectangular active element.
| Property | Type | Unit | Description |
|---|---|---|---|
centralFrequency required |
number | Hz | Central frequency of the probe |
length required |
number | m | Length of the probe's active element |
width required |
number | m | Width of the probe's active element |
elements required |
array | - | An elements array (single element in this case) |
Example
"conventionalRectangular": {
"length": 0.02,
"width": 0.01,
"centralFrequency": 10000000.0,
"elements": [
{
"id": 0,
"acquisitionUnitId": 0,
"connectorName": "P1"
}
]
}
phasedArrayLinear¶
UT Typeobject
The phasedArrayLinear object describes a phased array ultrasonic probe with a linear element arrangement.
| Property | Type | Unit | Description |
|---|---|---|---|
centralFrequency required |
number | Hz | Central frequency of all elements |
| elements | array | - | An elements array |
primaryAxis required |
object | - | A probeAxis object describing the primary axis |
secondaryAxis required |
object | - | A probeAxis object describing the secondary axis |
Supported configurations:
- 1D linear array with flat or curved active face (along primary or secondary axis)
- 2D linear array with flat or curved active face (along primary or secondary axis)
elements¶
UT Typearray
The elements array lists the probe elements and their connection properties.
| Property | Type | Description |
|---|---|---|
id required |
integer | Unique id of the probe element |
pinId required |
integer | Pin id to which the element is connected |
acquisitionUnitId required |
integer | Unique id of the acquisition unit to which the element is connected |
connectorName required |
string | Name of the connector interfacing the element with the acquisition unit |
| primaryIndex | integer | Element numbering along the probe primary axis |
| secondaryIndex | integer | Element numbering along the probe secondary axis |
| enable | boolean | Whether the element is activated |
Related objects: acquisitionUnits

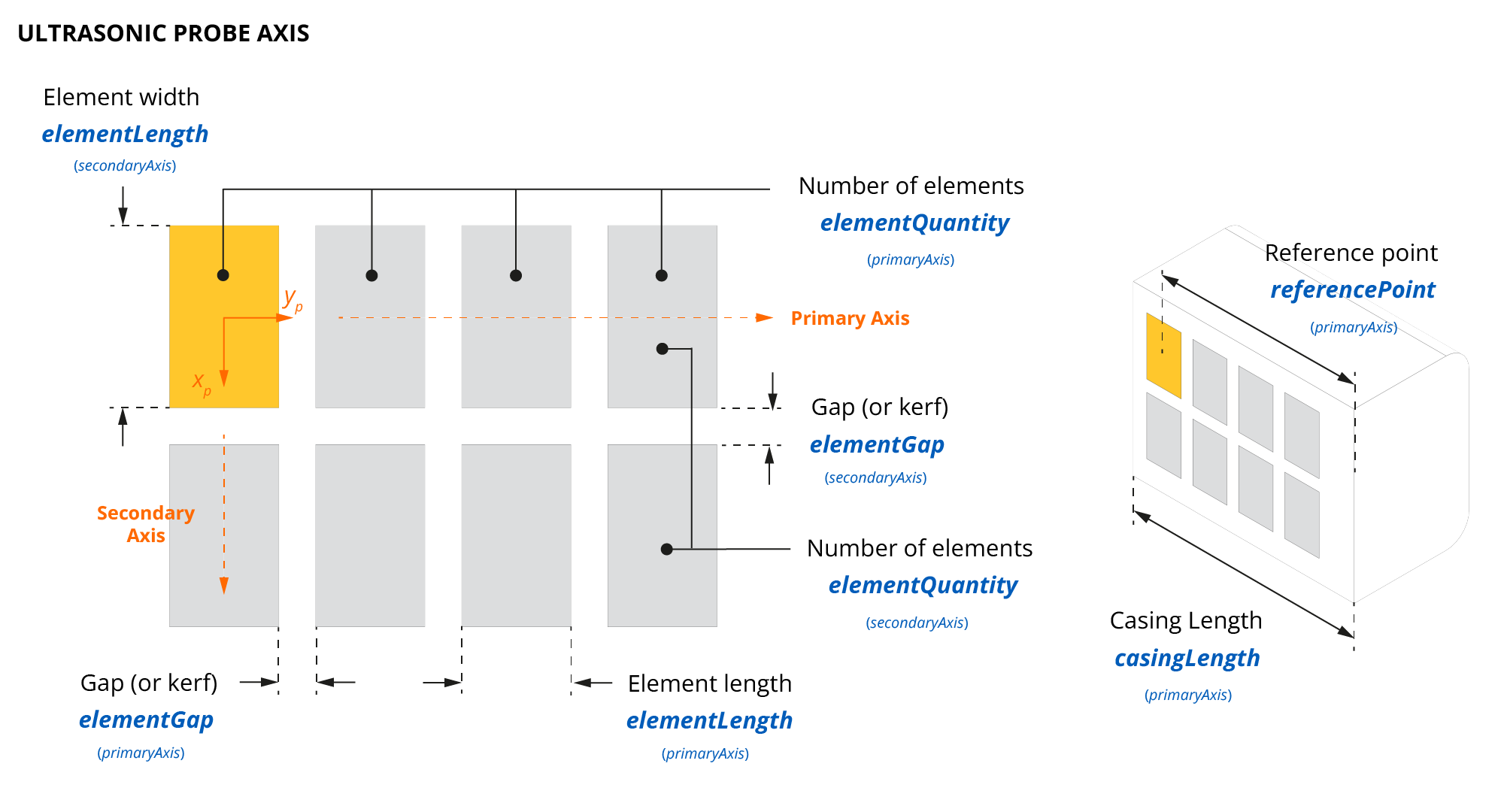

probeAxis¶
UT Typeobject
The probeAxis object describes a given probe axis.
| Property | Type | Unit | Description |
|---|---|---|---|
elementGap required |
number | m | Spacing between two adjacent elements |
elementQuantity required |
integer | - | Number of elements along this axis |
elementLength required |
number | m | Length of a single element (constant across all elements) |
referencePoint required |
number | m | Distance from the casing edge to the center of the first element along this axis |
| casingLength | number | m | Length of the casing embedding the array along this axis |
Hypotheses:
- Constant
elementLengthandelementGapforelementQuantityelements along each probe axis. - Probe surface may be curved along the primary or secondary axis, but not both simultaneously.
Example
"phasedArrayLinear": {
"centralFrequency": 5000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{...}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 64,
"elementLength": 0.0005,
"referencePoint": -0.0366,
"casingLength": 0.04
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.01,
"referencePoint": 0.0,
"casingLength": 2E-06
}
}
eddyCurrentProbe¶
ET Typeobject 4.3.0
The eddyCurrentProbe object describes and eddy current probe. Within a probe, sensors are organized into sensor groups — sets of sensors meant to be operated together to produce a single inspection result (same flaw response for a given set of acquisition parameters).
| Property | Type | Unit | Description |
|---|---|---|---|
sensorGroups required |
array | - | Description of each sensor group defined for the probe |
sensorGroups¶
ET Typearray 4.3.0
Each object under sensorGroups describes a specific sensor group.
| Property | Type | Description |
|---|---|---|
id required |
integer | Unique group id |
name required |
string | Name of the group |
sensors required |
array | Definition of each sensor within the group |
sensors¶
ET Typearray 4.3.0
The sensors array enumerates each sensor (channel) object within a sensor group.
| Property | Type | Unit | Description |
|---|---|---|---|
id required |
integer | - | Unique id for this sensor |
acquisitionUnitId required |
integer | - | Unique id of the acquisition unit to which this sensor is connected |
primaryOffset required |
number | m | Position of the sensor peak response along the probe primary axis |
secondaryOffset required |
number | m | Position of the sensor peak response along the probe secondary axis |
Probe coordinate system — Each sensor is positioned in a surface coordinate system co-planar with the specimen for an in-contact probe at all inspection positions. This assumption is made without approximation for flexible probes (which physically conform to the inspected surface). For rigid probes, only elements with low lift-off variation are expected to be usable, so the co-planar hypothesis leads to only very small aberrations.
- The (0,0) origin is shared across all objects under
sensorGroups. - The (0,0) position is arbitrary in the
.ndefile, although in practice it typically aligns with a reference marking on the probe body indicating the beginning of the probe coverage.

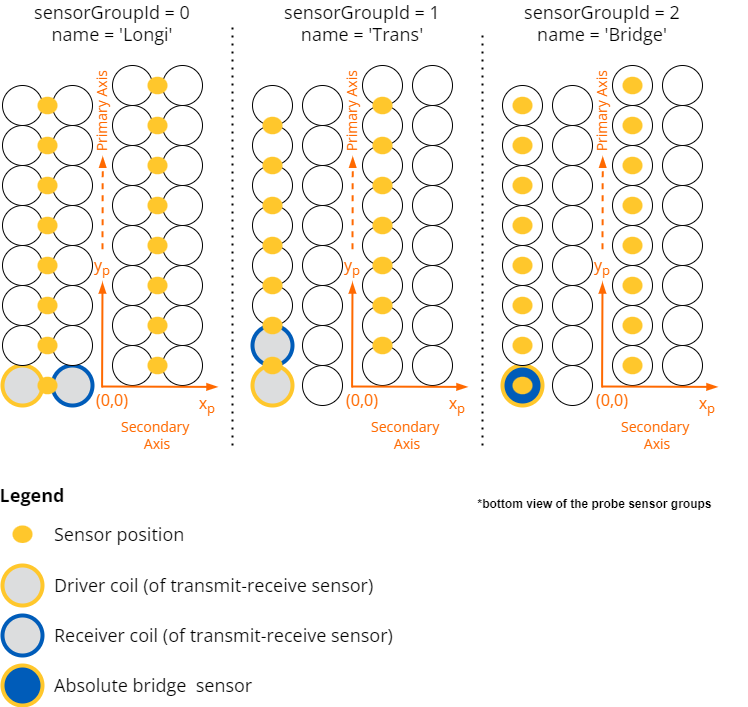

Multiple sensor groups within an ECA probe and the associated coordinate system.
Coil inversion
When coil connections through a multiplexer require inverting polarity, an inverted coil must be rotated 180° prior to data exposure. NDE datasets are saved after applying these inversion rotations.
Example
"eddyCurrentProbe": {
"sensorGroups": [
{
"id": 0,
"name": "SUB-ECA-64mm/32",
"sensors": [
{
"id": 0,
"acquisitionUnitId": 0,
"primaryOffset": 0.0,
"secondaryOffset": 0.0
},
{
"id": 1,
"acquisitionUnitId": 0,
"primaryOffset": 0.002,
"secondaryOffset": 0.0
},
{
"id": 2,
"acquisitionUnitId": 0,
"primaryOffset": 0.004,
"secondaryOffset": 0.0
},
{
"id": 3,
"acquisitionUnitId": 0,
"primaryOffset": 0.006,
"secondaryOffset": 0.0
}
]
}
]
}
Examples¶
UT Phased array probe examples
"probes": [
{
"id": 0,
"model": "5L64-A32",
"serie": "A32",
"phasedArrayLinear": {
"centralFrequency": 5000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 32,
"pinId": 32,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 32,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 33,
"pinId": 33,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 33,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 34,
"pinId": 34,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 34,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 35,
"pinId": 35,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 35,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 36,
"pinId": 36,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 36,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 37,
"pinId": 37,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 37,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 38,
"pinId": 38,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 38,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 39,
"pinId": 39,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 39,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 40,
"pinId": 40,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 40,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 41,
"pinId": 41,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 41,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 42,
"pinId": 42,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 42,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 43,
"pinId": 43,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 43,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 44,
"pinId": 44,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 44,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 45,
"pinId": 45,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 45,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 46,
"pinId": 46,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 46,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 47,
"pinId": 47,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 47,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 48,
"pinId": 48,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 48,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 49,
"pinId": 49,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 49,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 50,
"pinId": 50,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 50,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 51,
"pinId": 51,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 51,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 52,
"pinId": 52,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 52,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 53,
"pinId": 53,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 53,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 54,
"pinId": 54,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 54,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 55,
"pinId": 55,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 55,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 56,
"pinId": 56,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 56,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 57,
"pinId": 57,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 57,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 58,
"pinId": 58,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 58,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 59,
"pinId": 59,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 59,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 60,
"pinId": 60,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 60,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 61,
"pinId": 61,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 61,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 62,
"pinId": 62,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 62,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 63,
"pinId": 63,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 63,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 64,
"elementLength": 0.0005,
"referencePoint": -0.0366,
"casingLength": 0.04
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.01,
"referencePoint": 0.0,
"casingLength": 2E-06
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "10CCEV35-32-A15",
"serie": "A15",
"phasedArrayLinear": {
"centralFrequency": 10000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 32,
"elementLength": 0.00025,
"referencePoint": -0.012400000000000001,
"casingLength": 0.01503
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.007,
"referencePoint": 0.0,
"casingLength": 2E-06
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "7.5L64-I4",
"serie": "I4",
"phasedArrayLinear": {
"centralFrequency": 7500000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 32,
"pinId": 32,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 32,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 33,
"pinId": 33,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 33,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 34,
"pinId": 34,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 34,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 35,
"pinId": 35,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 35,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 36,
"pinId": 36,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 36,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 37,
"pinId": 37,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 37,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 38,
"pinId": 38,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 38,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 39,
"pinId": 39,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 39,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 40,
"pinId": 40,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 40,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 41,
"pinId": 41,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 41,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 42,
"pinId": 42,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 42,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 43,
"pinId": 43,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 43,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 44,
"pinId": 44,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 44,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 45,
"pinId": 45,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 45,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 46,
"pinId": 46,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 46,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 47,
"pinId": 47,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 47,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 48,
"pinId": 48,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 48,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 49,
"pinId": 49,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 49,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 50,
"pinId": 50,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 50,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 51,
"pinId": 51,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 51,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 52,
"pinId": 52,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 52,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 53,
"pinId": 53,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 53,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 54,
"pinId": 54,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 54,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 55,
"pinId": 55,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 55,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 56,
"pinId": 56,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 56,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 57,
"pinId": 57,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 57,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 58,
"pinId": 58,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 58,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 59,
"pinId": 59,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 59,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 60,
"pinId": 60,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 60,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 61,
"pinId": 61,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 61,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 62,
"pinId": 62,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 62,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 63,
"pinId": 63,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 63,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 64,
"elementLength": 0.001,
"referencePoint": -0.0675,
"casingLength": 0.072000000000000008
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.007,
"referencePoint": 0.0,
"casingLength": 2E-06
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "7.5L60-PWZ1",
"serie": "PWZ1",
"phasedArrayLinear": {
"centralFrequency": 7500000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 32,
"pinId": 32,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 32,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 33,
"pinId": 33,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 33,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 34,
"pinId": 34,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 34,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 35,
"pinId": 35,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 35,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 36,
"pinId": 36,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 36,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 37,
"pinId": 37,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 37,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 38,
"pinId": 38,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 38,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 39,
"pinId": 39,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 39,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 40,
"pinId": 40,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 40,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 41,
"pinId": 41,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 41,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 42,
"pinId": 42,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 42,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 43,
"pinId": 43,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 43,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 44,
"pinId": 44,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 44,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 45,
"pinId": 45,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 45,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 46,
"pinId": 46,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 46,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 47,
"pinId": 47,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 47,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 48,
"pinId": 48,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 48,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 49,
"pinId": 49,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 49,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 50,
"pinId": 50,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 50,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 51,
"pinId": 51,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 51,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 52,
"pinId": 52,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 52,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 53,
"pinId": 53,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 53,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 54,
"pinId": 54,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 54,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 55,
"pinId": 55,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 55,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 56,
"pinId": 56,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 56,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 57,
"pinId": 57,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 57,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 58,
"pinId": 58,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 58,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 59,
"pinId": 59,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 59,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 60,
"elementLength": 0.001,
"referencePoint": -0.06339,
"casingLength": 0.068
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.01,
"referencePoint": 0.0,
"casingLength": 2E-06
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "5DL32-32X12-A26",
"serie": "A26",
"phasedArrayLinear": {
"centralFrequency": 5000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 32,
"elementLength": 0.001,
"referencePoint": -0.01033,
"casingLength": 0.032
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.012,
"referencePoint": 0.015380000000000001,
"casingLength": 0.012
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
},
{
"id": 1,
"model": "5DL32-32X12-A26",
"serie": "A26",
"phasedArrayLinear": {
"centralFrequency": 5000000.0,
"elements": [
{
"id": 32,
"pinId": 32,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 33,
"pinId": 33,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 34,
"pinId": 34,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 35,
"pinId": 35,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 36,
"pinId": 36,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 37,
"pinId": 37,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 38,
"pinId": 38,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 39,
"pinId": 39,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 40,
"pinId": 40,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 41,
"pinId": 41,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 42,
"pinId": 42,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 43,
"pinId": 43,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 44,
"pinId": 44,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 45,
"pinId": 45,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 46,
"pinId": 46,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 47,
"pinId": 47,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 48,
"pinId": 48,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 16,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 49,
"pinId": 49,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 17,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 50,
"pinId": 50,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 18,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 51,
"pinId": 51,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 19,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 52,
"pinId": 52,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 20,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 53,
"pinId": 53,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 21,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 54,
"pinId": 54,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 22,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 55,
"pinId": 55,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 23,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 56,
"pinId": 56,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 24,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 57,
"pinId": 57,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 25,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 58,
"pinId": 58,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 26,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 59,
"pinId": 59,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 27,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 60,
"pinId": 60,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 28,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 61,
"pinId": 61,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 29,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 62,
"pinId": 62,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 30,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 63,
"pinId": 63,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 31,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 32,
"elementLength": 0.001,
"referencePoint": -0.01033,
"casingLength": 0.032
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.012,
"referencePoint": -0.015380000000000001,
"casingLength": 0.012
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 1,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "4DM16X2SM-16X6-A27",
"serie": "A27 (DMA 16x2)",
"phasedArrayLinear": {
"centralFrequency": 4000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 8,
"pinId": 8,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 9,
"pinId": 9,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 10,
"pinId": 10,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 11,
"pinId": 11,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 12,
"pinId": 12,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 13,
"pinId": 13,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 14,
"pinId": 14,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 15,
"pinId": 15,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 16,
"pinId": 16,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 17,
"pinId": 17,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 18,
"pinId": 18,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 19,
"pinId": 19,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 20,
"pinId": 20,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 21,
"pinId": 21,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 22,
"pinId": 22,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 23,
"pinId": 23,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 24,
"pinId": 24,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 25,
"pinId": 25,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 26,
"pinId": 26,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 27,
"pinId": 27,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 28,
"pinId": 28,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 29,
"pinId": 29,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 30,
"pinId": 30,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 31,
"pinId": 31,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 1,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 16,
"elementLength": 0.001,
"referencePoint": -0.0068200000000000005,
"casingLength": 0.016
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 2,
"elementLength": 0.003,
"referencePoint": 0.01345,
"casingLength": 0.006
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
},
{
"id": 1,
"model": "4DM16X2SM-16X6-A27",
"serie": "A27 (DMA 16x2)",
"phasedArrayLinear": {
"centralFrequency": 4000000.0,
"elements": [
{
"id": 32,
"pinId": 32,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 33,
"pinId": 33,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 34,
"pinId": 34,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 35,
"pinId": 35,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 36,
"pinId": 36,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 37,
"pinId": 37,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 38,
"pinId": 38,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 39,
"pinId": 39,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 40,
"pinId": 40,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 41,
"pinId": 41,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 42,
"pinId": 42,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 43,
"pinId": 43,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 44,
"pinId": 44,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 45,
"pinId": 45,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 46,
"pinId": 46,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 47,
"pinId": 47,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 48,
"pinId": 48,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 49,
"pinId": 49,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 8,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 50,
"pinId": 50,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 51,
"pinId": 51,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 9,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 52,
"pinId": 52,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 53,
"pinId": 53,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 10,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 54,
"pinId": 54,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 55,
"pinId": 55,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 11,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 56,
"pinId": 56,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 57,
"pinId": 57,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 12,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 58,
"pinId": 58,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 59,
"pinId": 59,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 13,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 60,
"pinId": 60,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 61,
"pinId": 61,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 14,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 62,
"pinId": 62,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 1,
"enabled": true
},
{
"id": 63,
"pinId": 63,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 15,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 16,
"elementLength": 0.001,
"referencePoint": -0.0068200000000000005,
"casingLength": 0.016
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 2,
"elementLength": 0.003,
"referencePoint": -0.01345,
"casingLength": 0.006
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 1,
"orientation": "Normal"
}
}
]
"probes": [
{
"id": 0,
"model": "2L8-DGS1",
"serie": "DGS1",
"phasedArrayLinear": {
"centralFrequency": 2000000.0,
"elements": [
{
"id": 0,
"pinId": 0,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 0,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 1,
"pinId": 1,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 1,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 2,
"pinId": 2,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 2,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 3,
"pinId": 3,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 3,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 4,
"pinId": 4,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 4,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 5,
"pinId": 5,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 5,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 6,
"pinId": 6,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 6,
"secondaryIndex": 0,
"enabled": true
},
{
"id": 7,
"pinId": 7,
"acquisitionUnitId": 0,
"connectorName": "PA",
"primaryIndex": 7,
"secondaryIndex": 0,
"enabled": true
}
],
"primaryAxis": {
"elementGap": 0.0,
"elementQuantity": 8,
"elementLength": 0.001,
"referencePoint": -0.02,
"casingLength": 0.0273
},
"secondaryAxis": {
"elementGap": 0.0,
"elementQuantity": 1,
"elementLength": 0.0090000000000000011,
"referencePoint": 0.0,
"casingLength": 2E-06
}
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0,
"orientation": "Normal"
}
}
]
UT Single and dual element probe examples
"probes": [
{
"id": 0,
"model": "D713",
"serie": "DUAL",
"conventionalRound": {
"centralFrequency": 10000000.0,
"diameter": 0.00635,
"elements": [
{
"id": 0,
"acquisitionUnitId": 0,
"connectorName": "P1"
}
]
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 0
}
},
{
"id": 1,
"model": "D713",
"serie": "DUAL",
"conventionalRound": {
"centralFrequency": 10000000.0,
"diameter": 0.00635,
"elements": [
{
"id": 0,
"acquisitionUnitId": 0,
"connectorName": "R1"
}
]
},
"wedgeAssociation": {
"wedgeId": 0,
"mountingLocationId": 1
}
}
]
ET Eddy Current Array probe example
Full example of an ECA probe definition with 2 groups (Longi and Trans) composed of 32 and 30 channels respectively.
{
"probes": [
{
"id": 0,
"model": "Subsurface64_LT",
"eddyCurrentProbe": {
"sensorGroups": [
{
"id": 0,
"name": "Longi",
"sensors": [
{
"id": 0,
"acquisitionUnitId": 0,
"primaryOffset": 0,
"secondaryOffset": 0
},
{
"id": 1,
"acquisitionUnitId": 0,
"primaryOffset": 0.002,
"secondaryOffset": 0
},
{
"id": 2,
"acquisitionUnitId": 0,
"primaryOffset": 0.004,
"secondaryOffset": 0
},
{
"id": 3,
"acquisitionUnitId": 0,
"primaryOffset": 0.006,
"secondaryOffset": 0
},
{
"id": 4,
"acquisitionUnitId": 0,
"primaryOffset": 0.008,
"secondaryOffset": 0
},
{
"id": 5,
"acquisitionUnitId": 0,
"primaryOffset": 0.01,
"secondaryOffset": 0
},
{
"id": 6,
"acquisitionUnitId": 0,
"primaryOffset": 0.012,
"secondaryOffset": 0
},
{
"id": 7,
"acquisitionUnitId": 0,
"primaryOffset": 0.014,
"secondaryOffset": 0
},
{
"id": 8,
"acquisitionUnitId": 0,
"primaryOffset": 0.016,
"secondaryOffset": 0
},
{
"id": 9,
"acquisitionUnitId": 0,
"primaryOffset": 0.018000000000000002,
"secondaryOffset": 0
},
{
"id": 10,
"acquisitionUnitId": 0,
"primaryOffset": 0.02,
"secondaryOffset": 0
},
{
"id": 11,
"acquisitionUnitId": 0,
"primaryOffset": 0.022,
"secondaryOffset": 0
},
{
"id": 12,
"acquisitionUnitId": 0,
"primaryOffset": 0.024,
"secondaryOffset": 0
},
{
"id": 13,
"acquisitionUnitId": 0,
"primaryOffset": 0.026000000000000002,
"secondaryOffset": 0
},
{
"id": 14,
"acquisitionUnitId": 0,
"primaryOffset": 0.028,
"secondaryOffset": 0
},
{
"id": 15,
"acquisitionUnitId": 0,
"primaryOffset": 0.03,
"secondaryOffset": 0
},
{
"id": 16,
"acquisitionUnitId": 0,
"primaryOffset": 0.032,
"secondaryOffset": 0
},
{
"id": 17,
"acquisitionUnitId": 0,
"primaryOffset": 0.034,
"secondaryOffset": 0
},
{
"id": 18,
"acquisitionUnitId": 0,
"primaryOffset": 0.036000000000000004,
"secondaryOffset": 0
},
{
"id": 19,
"acquisitionUnitId": 0,
"primaryOffset": 0.038,
"secondaryOffset": 0
},
{
"id": 20,
"acquisitionUnitId": 0,
"primaryOffset": 0.04,
"secondaryOffset": 0
},
{
"id": 21,
"acquisitionUnitId": 0,
"primaryOffset": 0.042,
"secondaryOffset": 0
},
{
"id": 22,
"acquisitionUnitId": 0,
"primaryOffset": 0.044,
"secondaryOffset": 0
},
{
"id": 23,
"acquisitionUnitId": 0,
"primaryOffset": 0.046,
"secondaryOffset": 0
},
{
"id": 24,
"acquisitionUnitId": 0,
"primaryOffset": 0.048,
"secondaryOffset": 0
},
{
"id": 25,
"acquisitionUnitId": 0,
"primaryOffset": 0.05,
"secondaryOffset": 0
},
{
"id": 26,
"acquisitionUnitId": 0,
"primaryOffset": 0.052000000000000005,
"secondaryOffset": 0
},
{
"id": 27,
"acquisitionUnitId": 0,
"primaryOffset": 0.054,
"secondaryOffset": 0
},
{
"id": 28,
"acquisitionUnitId": 0,
"primaryOffset": 0.056,
"secondaryOffset": 0
},
{
"id": 29,
"acquisitionUnitId": 0,
"primaryOffset": 0.058,
"secondaryOffset": 0
},
{
"id": 30,
"acquisitionUnitId": 0,
"primaryOffset": 0.06,
"secondaryOffset": 0
},
{
"id": 31,
"acquisitionUnitId": 0,
"primaryOffset": 0.062,
"secondaryOffset": 0
}
]
},
{
"id": 1,
"name": "Trans",
"sensors": [
{
"id": 0,
"acquisitionUnitId": 0,
"primaryOffset": 0,
"secondaryOffset": 0.00475
},
{
"id": 1,
"acquisitionUnitId": 0,
"primaryOffset": 0.002,
"secondaryOffset": -0.00475
},
{
"id": 2,
"acquisitionUnitId": 0,
"primaryOffset": 0.004,
"secondaryOffset": 0.00475
},
{
"id": 3,
"acquisitionUnitId": 0,
"primaryOffset": 0.006,
"secondaryOffset": -0.00475
},
{
"id": 4,
"acquisitionUnitId": 0,
"primaryOffset": 0.008,
"secondaryOffset": 0.00475
},
{
"id": 5,
"acquisitionUnitId": 0,
"primaryOffset": 0.01,
"secondaryOffset": -0.00475
},
{
"id": 6,
"acquisitionUnitId": 0,
"primaryOffset": 0.012,
"secondaryOffset": 0.00475
},
{
"id": 7,
"acquisitionUnitId": 0,
"primaryOffset": 0.014,
"secondaryOffset": -0.00475
},
{
"id": 8,
"acquisitionUnitId": 0,
"primaryOffset": 0.016,
"secondaryOffset": 0.00475
},
{
"id": 9,
"acquisitionUnitId": 0,
"primaryOffset": 0.018000000000000002,
"secondaryOffset": -0.00475
},
{
"id": 10,
"acquisitionUnitId": 0,
"primaryOffset": 0.02,
"secondaryOffset": 0.00475
},
{
"id": 11,
"acquisitionUnitId": 0,
"primaryOffset": 0.022,
"secondaryOffset": -0.00475
},
{
"id": 12,
"acquisitionUnitId": 0,
"primaryOffset": 0.024,
"secondaryOffset": 0.00475
},
{
"id": 13,
"acquisitionUnitId": 0,
"primaryOffset": 0.026000000000000002,
"secondaryOffset": -0.00475
},
{
"id": 14,
"acquisitionUnitId": 0,
"primaryOffset": 0.028,
"secondaryOffset": 0.00475
},
{
"id": 15,
"acquisitionUnitId": 0,
"primaryOffset": 0.03,
"secondaryOffset": -0.00475
},
{
"id": 16,
"acquisitionUnitId": 0,
"primaryOffset": 0.032,
"secondaryOffset": 0.00475
},
{
"id": 17,
"acquisitionUnitId": 0,
"primaryOffset": 0.034,
"secondaryOffset": -0.00475
},
{
"id": 18,
"acquisitionUnitId": 0,
"primaryOffset": 0.036000000000000004,
"secondaryOffset": 0.00475
},
{
"id": 19,
"acquisitionUnitId": 0,
"primaryOffset": 0.038,
"secondaryOffset": -0.00475
},
{
"id": 20,
"acquisitionUnitId": 0,
"primaryOffset": 0.04,
"secondaryOffset": 0.00475
},
{
"id": 21,
"acquisitionUnitId": 0,
"primaryOffset": 0.042,
"secondaryOffset": -0.00475
},
{
"id": 22,
"acquisitionUnitId": 0,
"primaryOffset": 0.044,
"secondaryOffset": 0.00475
},
{
"id": 23,
"acquisitionUnitId": 0,
"primaryOffset": 0.046,
"secondaryOffset": -0.00475
},
{
"id": 24,
"acquisitionUnitId": 0,
"primaryOffset": 0.048,
"secondaryOffset": 0.00475
},
{
"id": 25,
"acquisitionUnitId": 0,
"primaryOffset": 0.05,
"secondaryOffset": -0.00475
},
{
"id": 26,
"acquisitionUnitId": 0,
"primaryOffset": 0.052000000000000005,
"secondaryOffset": 0.00475
},
{
"id": 27,
"acquisitionUnitId": 0,
"primaryOffset": 0.054,
"secondaryOffset": -0.00475
},
{
"id": 28,
"acquisitionUnitId": 0,
"primaryOffset": 0.056,
"secondaryOffset": 0.00475
},
{
"id": 29,
"acquisitionUnitId": 0,
"primaryOffset": 0.058,
"secondaryOffset": -0.00475
}
]
}
]
}
}
]
}
