OmniScan™ MXU Software¶

Specific information related to how the OmniScan X3 and X4 products save .nde files will be documented on this page.

CHANGELOG¶

Any change or correction regarding the way the OmniScan X3 and X4 flaw detectors save data in the .nde format will be logged in this section.

MXU 6.2.0 - August 26, 2025¶

Changed¶

For a One-Line Scan in 0° with overlap configuration, the dataMappings object is now aligned with the Raster Scan in 0° with overlap case. This includes a second axis to the description of the discreteGrid object dimensions, but without 'motionDeviceId' specified.

Example

BeforeAfter

"dataMappings": [
{
"id": 0,
"specimenId": 0,
"surfaceId": 0,
"discreteGrid": {
    "scanPattern": "OneLineScan",
    "uCoordinateOrientation": "Length",
    "dimensions": [
        {
            "axis": "UCoordinate",
            "motionDeviceId": 0,
            "name": "Scan",
            "offset": 0.0,
            "quantity": 301,
            "resolution": 0.001
        }
    ]
}
}
]

"dataMappings": [
{
"id": 0,
"specimenId": 0,
"surfaceId": 0,
"discreteGrid": {
    "scanPattern": "OneLineScan",
    "uCoordinateOrientation": "Length",
    "dimensions": [
        {
            "axis": "UCoordinate",
            "motionDeviceId": 0,
            "name": "Scan",
            "offset": 0.0,
            "quantity": 301,
            "resolution": 0.001
        },
        {
            "axis": "VCoordinate",
            "name": "Index",
            "offset": 0.0017500000000000016,
            "quantity": 57,
            "resolution": 0.0005
        }
    ]
}
}
]

Fixed¶

Following the fix introduced in MXU 6.1.0, resaving files with invalid HDF5 Groups Ids, when multiple TFM groups were configured, now correctly update the paths in the JSON-formatted Setup dataset.
Offsets in the beams array of datasets were previously set incorrectly for probe skew angles of 0° and 180°. This has been corrected for all new files saved or resaved with this version.

MXU 6.1.0 - April 23, 2025¶

Added¶

New dataset format export for phased array angle beam raster scanning. See NDE 4.1 changelog section.
Change of scanning axis for specific configurations, such as ToFD parallel scanning and Raster scanning at 0°. See NDE 4.1 changelog section.

Fixed¶

In some cases, Groups Ids were assigned incorrectly in the HDF5 structure when multiple TFM groups were configured (see example below), resulting in a mismatch with the JSON-formatted Setup dataset information.

Details - Invalid HDF5 Groups Ids when multiple TFM groups configured

Impacted files

For files created with MXU version 6.0.2, and when multiple TFM groups were configured, you may need to update your file reading routine due to a mismatch between:

The group ids and dataset paths in the JSON-formatted Setup dataset, and
The actual group ids present in the HDF5 structure.

Identifying the Issue

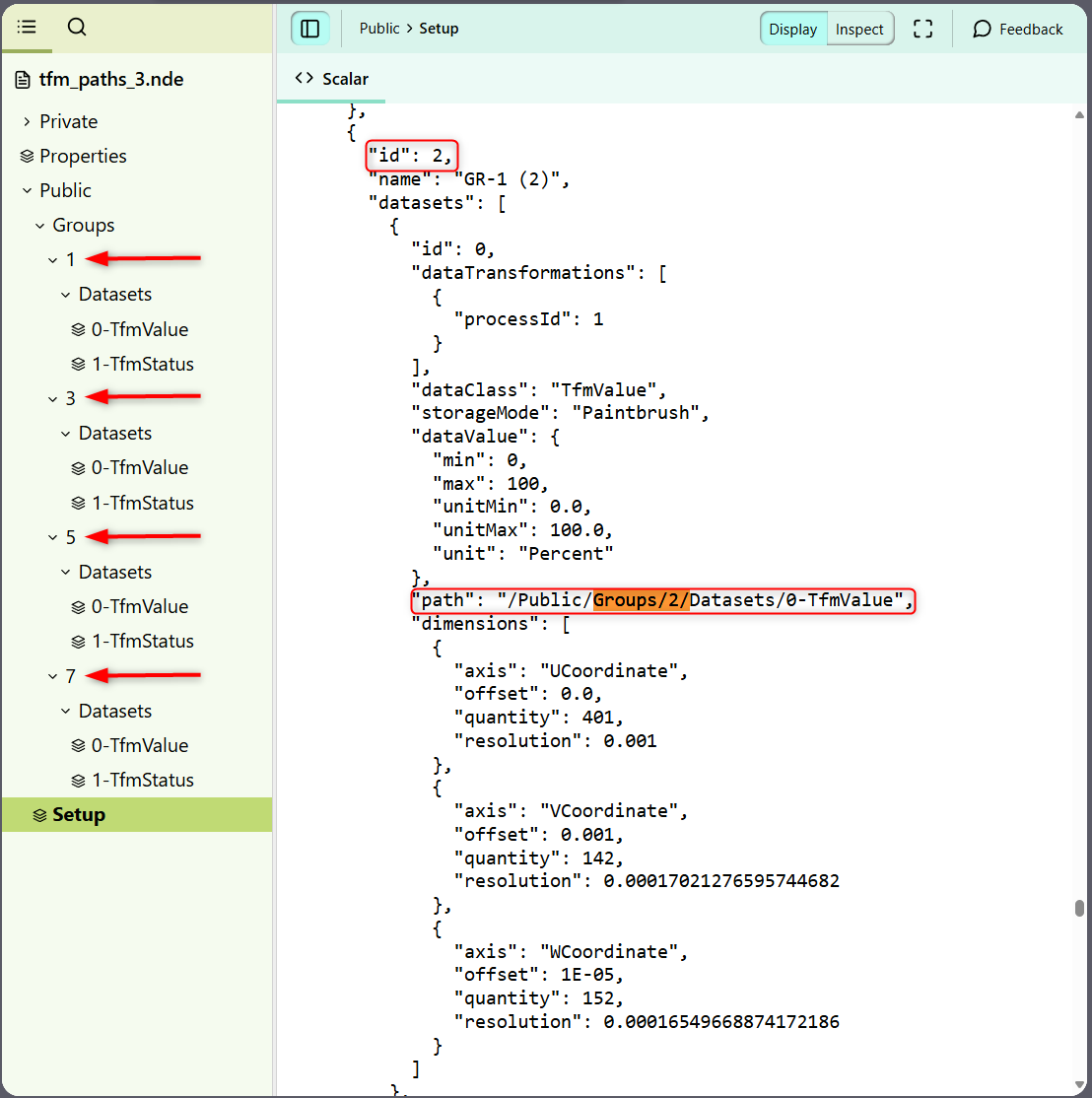

This mismatch typically appears when totalFocusingMethod groups reference group ids and dataset paths that do not exist in the HDF5 file structure. For example, the JSON Setup might refer to the /Public/Groups/2/Datasets/... path, while the HDF5 structure only contains /Public/Groups/1/, /Public/Groups/3/, etc. Note that the groups and datasets appear in the same order in both the HDF5 structure and the JSON Setup, but the group id may not match — which is the root cause of the issue.

Workaround

As a workaround, you can remap sequentially the dataset paths for each totalFocussingMethod group, based on their order, to match the correct group ids in the HDF5 file structure. This approach ensures that the datasets referenced in the Setup correctly align with those in the HDF5 structure, regardless of mismatched group numbers.

Example Remapping Table:

Groups listed in HDF5 structure	TFM datasets original paths	TFM datasets corrected paths	Comment
1	`/Public/Groups/1/Datasets/...`	`/Public/Groups/1/Datasets/...`	HDF5 Group exists. No path update needed.
3	`/Public/Groups/2/Datasets/...`	`/Public/Groups/3/Datasets/...`	HDF5 Group does not exist. Path update required.
5	`/Public/Groups/3/Datasets/...`	`/Public/Groups/5/Datasets/...`	HDF5 Group exists. Path update required.
...	...	...	...
